‌3V110-06 series solenoid valve‌ is a two-position three-way solenoid valve with multiple voltage options and good sealing performance. The following is a detailed introduction to this series of solenoid valves: Basic parameters and characteristics ‌Model‌: 3V110-06 ‌Working medium‌: Air (needs to be filtered through a filter screen above 40µm) ‌Action mode‌: Pilot type ‌Tube diameter‌: G1/8 ‌Effective cross-sectional area‌: 12.00mm² (CV=0.67) ‌Number of positions‌: Two-position three-way ‌Use pressure range‌: 0.15-0.8MPa ‌Maximum pressure resistance‌: 1.9MPa ‌Working temperature‌: -20-70°C ‌Material‌: Aluminum alloy ‌Electrical performance parameters‌: Standard voltages include AC380V, AC220V, AC110V, AC36V, AC24V, DC24V, and DC12V, and the use voltage ranges are AC: ±15% and DC: ±10%, respectively. The power consumption is AC: 3VA, DC: 3W. The protection level is IP65, and the heat resistance level is Class B. The maximum operating frequency is 5 times per second, and the shortest excitation time is less than 0.05 seconds.

‌SS5Y5 manifold‌ is a pneumatic component, mainly used in pneumatic systems to combine multiple gas sources into a unified outlet for easy management and control. SS5Y5 manifolds usually have multiple channels, which can connect multiple gas sources at the same time and provide gas sources through a unified outlet, thus simplifying the design and operation of pneumatic systems.

Our High-Pressure Telescopic PU Clamp Yarn Air Tube has a good quality and price advantage and cover most of the European and American markets. We look forward to becoming your long-term partner in China.

The model of this product is JMJ-07, the brand is EST/East, and it is mainly used for directional control. The interface size of the JMJ-07 mechanical valve is G1/4, the operating temperature range is -5℃ to 60℃, the working pressure is 0~0.8Mpa, the flow rate is 0.84CV, the effective cross-sectional area is 15.0mm², and the weight is 0.23kg. Working principle The working principle of the JMJ-07 mechanical valve is based on roller-type mechanical control, which is operated by the roller head to realize the two-position five-way switching function. Application scenario The JMJ-07 mechanical valve is suitable for various occasions requiring directional control, such as directional switching in pneumatic control systems.

AF4000-04D is an automatic drainage filter, mainly used for compressed air source processing, which can separate water and solid particles in compressed air and provide clean air source for gas-using equipment.

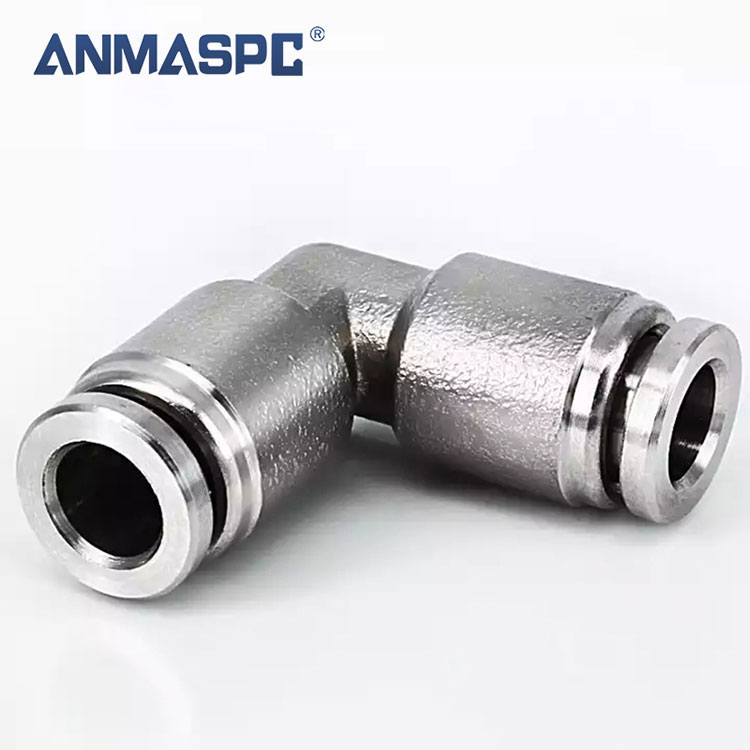

​Stainless Steel (SS304/316) Push In Fittings Stainless steel (SS304/316)push in fittings are made to be non corrosive and are highly resistant to aggressive environments, as well as corrosive fluids.
