Pneumatic Solenoid valve JMJ Series Mechanical Valve

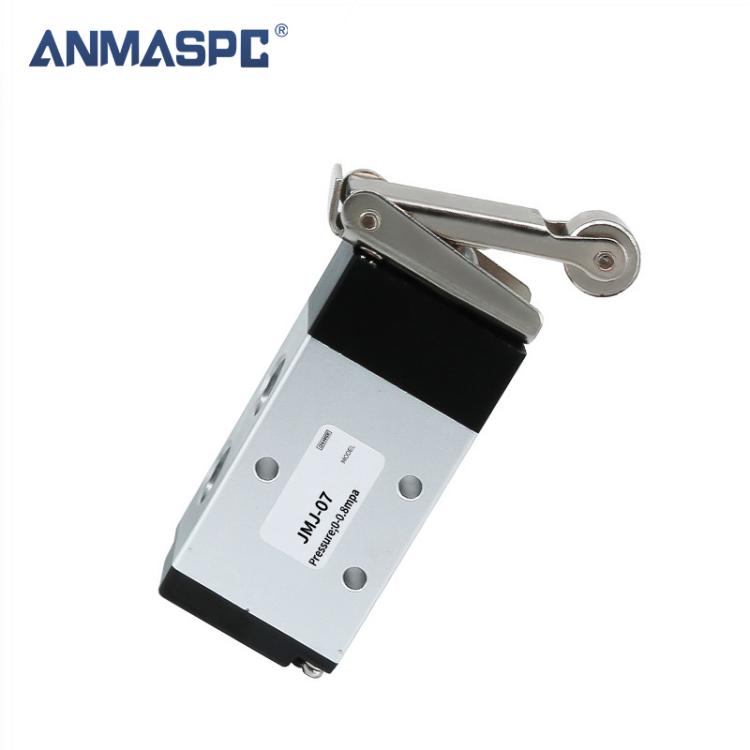

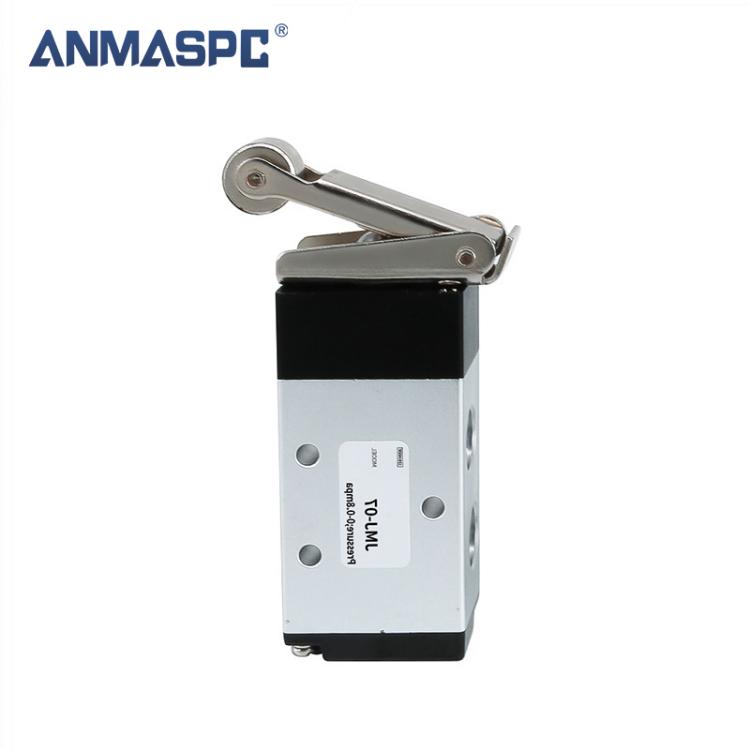

The model of this product is JMJ-07, the brand is EST/East, and it is mainly used for directional control. The interface size of the JMJ-07 mechanical valve is G1/4, the operating temperature range is -5℃ to 60℃, the working pressure is 0~0.8Mpa, the flow rate is 0.84CV, the effective cross-sectional area is 15.0mm², and the weight is 0.23kg.

Working principle

The working principle of the JMJ-07 mechanical valve is based on roller-type mechanical control, which is operated by the roller head to realize the two-position five-way switching function.

Application scenario

The JMJ-07 mechanical valve is suitable for various occasions requiring directional control, such as directional switching in pneumatic control systems.
