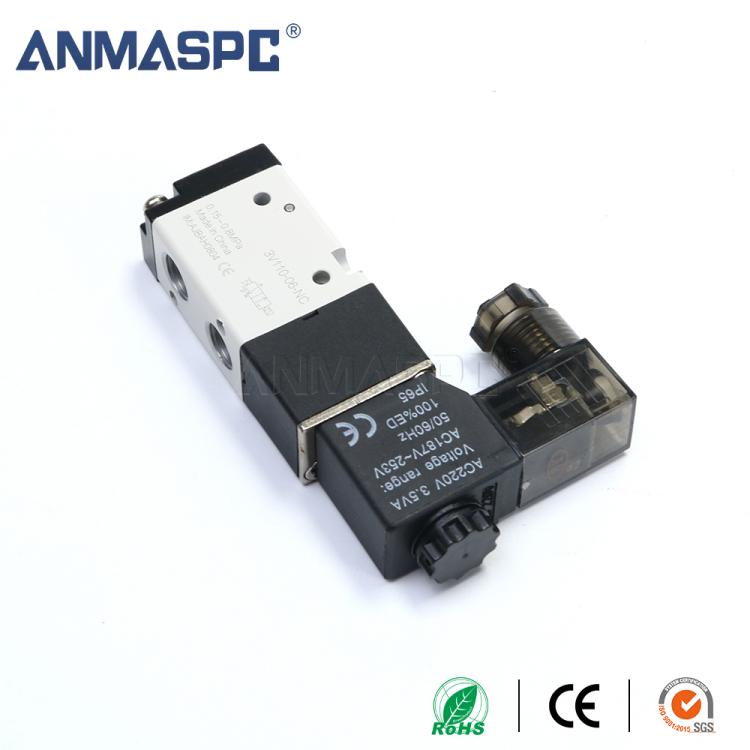

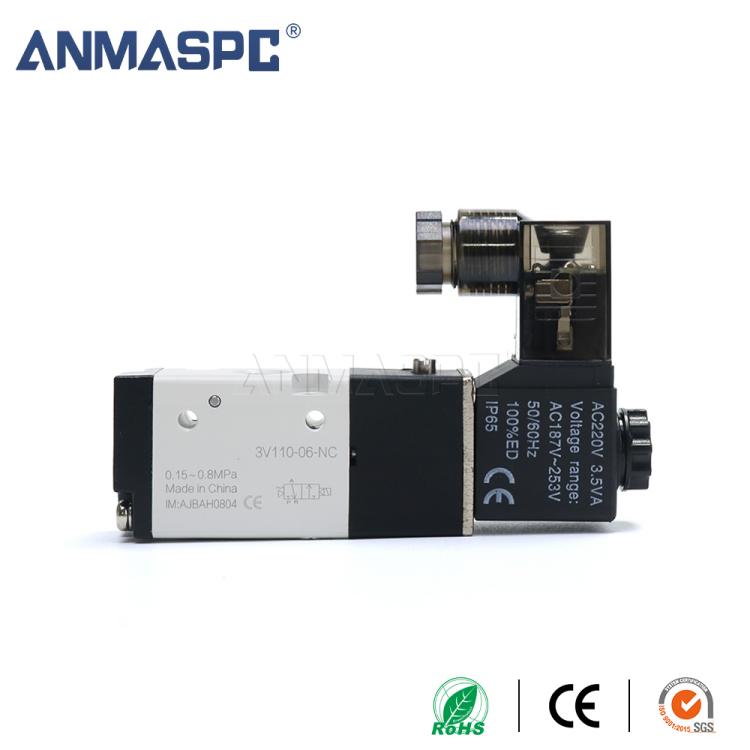

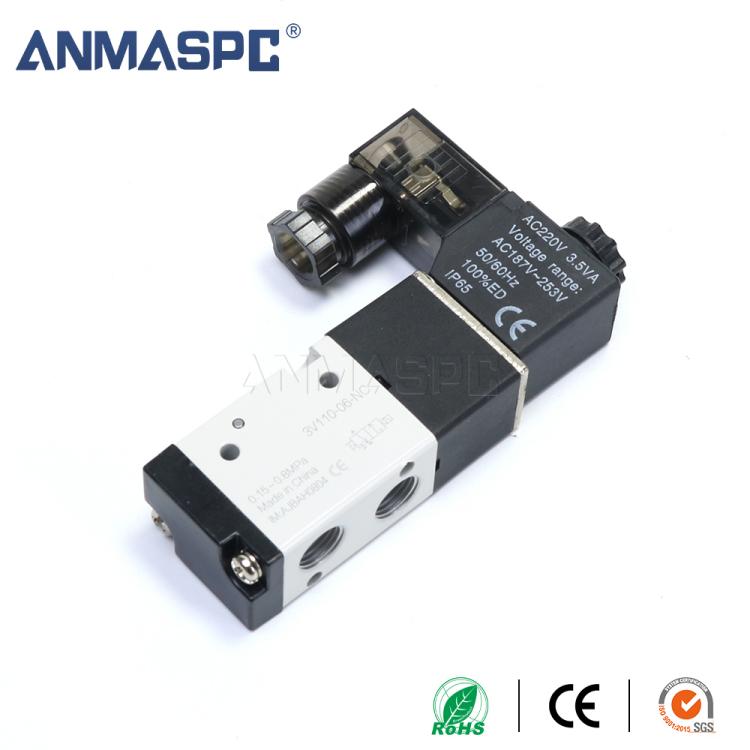

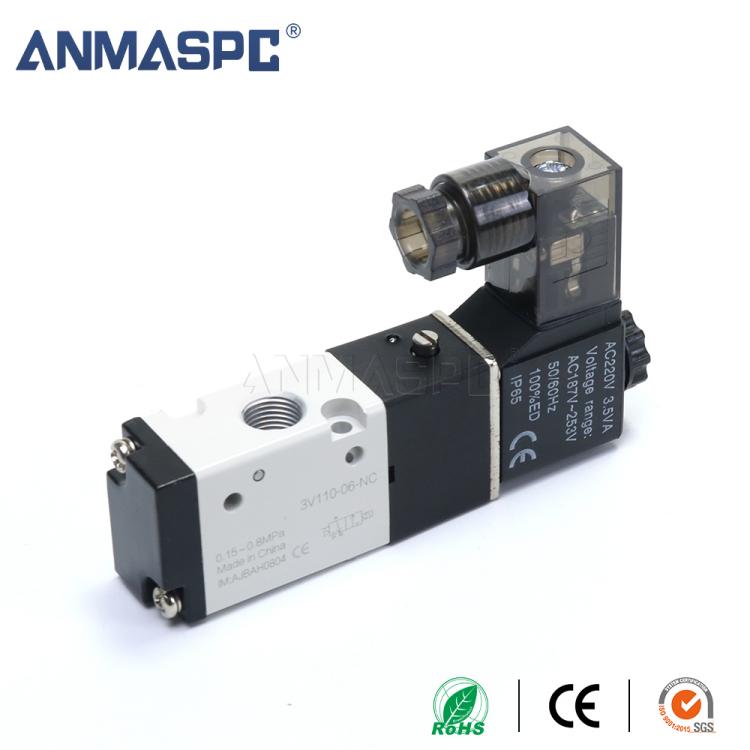

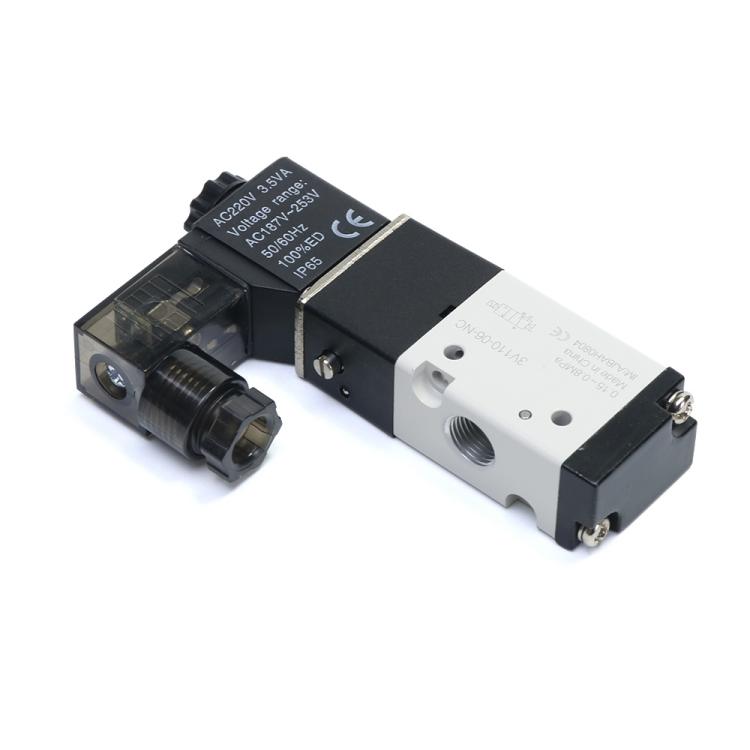

3V110-06 series solenoid valve for pneumatic control components

‌3V110-06 series solenoid valve‌ is a two-position three-way solenoid valve with multiple voltage options and good sealing performance. The following is a detailed introduction to this series of solenoid valves:

Basic parameters and characteristics

‌Model‌: 3V110-06

‌Working medium‌: Air (needs to be filtered through a filter screen above 40µm)

‌Action mode‌: Pilot type

‌Tube diameter‌: G1/8

‌Effective cross-sectional area‌: 12.00mm² (CV=0.67)

‌Number of positions‌: Two-position three-way

‌Use pressure range‌: 0.15-0.8MPa

‌Maximum pressure resistance‌: 1.9MPa

‌Working temperature‌: -20-70°C

‌Material‌: Aluminum alloy

‌Electrical performance parameters‌: Standard voltages include AC380V, AC220V, AC110V, AC36V, AC24V, DC24V, and DC12V, and the use voltage ranges are AC: ±15% and DC: ±10%, respectively. The power consumption is AC: 3VA, DC: 3W. The protection level is IP65, and the heat resistance level is Class B. The maximum operating frequency is 5 times per second, and the shortest excitation time is less than 0.05 seconds.
