The ‌Free Mount Cylinder‌ is a special pneumatic actuator that is widely used in industrial automation systems. Its biggest feature is its high flexibility and freedom, which can adapt to various complex mechanical equipment requirements. The free mount cylinder can be installed from multiple directions, which makes it perform well in situations where the equipment layout needs to be adjusted frequently. Structural Features The free mount cylinder usually consists of a cylinder barrel and a piston, which moves back and forth in the cylinder barrel to achieve linear pushing or pulling force. It has a simple structure, small size, and light weight, and is suitable for a variety of different application scenarios. In addition, the free mount cylinder can be fixed from four directions of the body, which is easy to install and use, and can save installation space.

‌3V110-06 series solenoid valve‌ is a two-position three-way solenoid valve with multiple voltage options and good sealing performance. The following is a detailed introduction to this series of solenoid valves: Basic parameters and characteristics ‌Model‌: 3V110-06 ‌Working medium‌: Air (needs to be filtered through a filter screen above 40µm) ‌Action mode‌: Pilot type ‌Tube diameter‌: G1/8 ‌Effective cross-sectional area‌: 12.00mm² (CV=0.67) ‌Number of positions‌: Two-position three-way ‌Use pressure range‌: 0.15-0.8MPa ‌Maximum pressure resistance‌: 1.9MPa ‌Working temperature‌: -20-70°C ‌Material‌: Aluminum alloy ‌Electrical performance parameters‌: Standard voltages include AC380V, AC220V, AC110V, AC36V, AC24V, DC24V, and DC12V, and the use voltage ranges are AC: ±15% and DC: ±10%, respectively. The power consumption is AC: 3VA, DC: 3W. The protection level is IP65, and the heat resistance level is Class B. The maximum operating frequency is 5 times per second, and the shortest excitation time is less than 0.05 seconds.

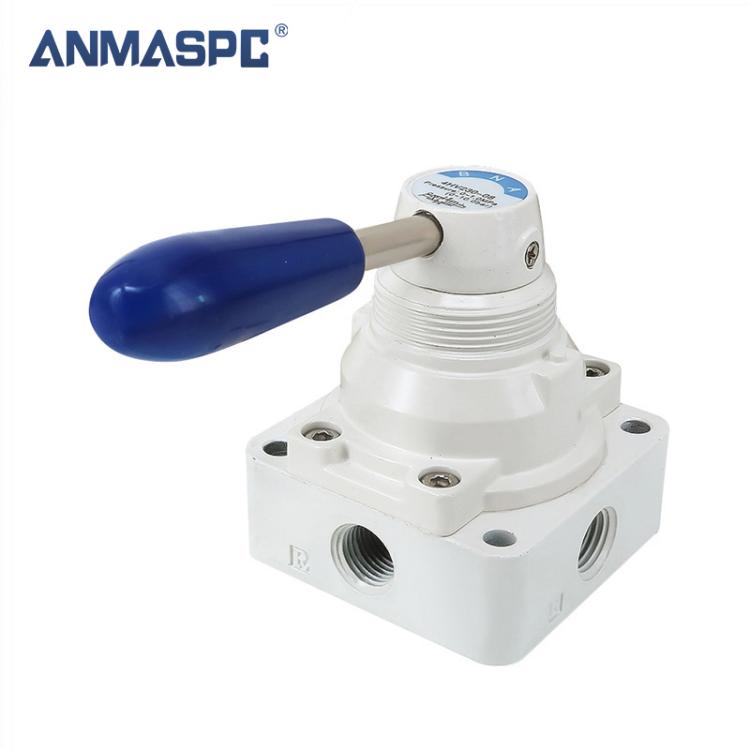

4H210-08 manual reset lever valve is a manually operated manual valve with the characteristics of manual reset and manual direct action. Its main purpose is to be used in pneumatic control systems to realize the switch operation of pneumatic components through manual swing control reversing. The hand valve has the following characteristics and specifications: ‌Manual operation‌: Through manual swing control reversing, the operation is simple, the movement is smooth, and the positioning is accurate and reliable. ‌Structural features‌: It adopts a sliding column structure with good sealing, small size, light weight, and easy assembly and disassembly. ‌Low friction resistance‌: The inner hole is processed by special technology, with low friction resistance and long service life. ‌Panel installation function‌: It supports panel installation, which is convenient and simple to install and meet various customer needs.

Jianghuai Pneumatic is one of the professional suppliers and manufacturers of PE 1.2mm 19ways 73.5mm HDPE Tube in China. We welcome to wholesale or customized PE 1.2mm 19ways 73.5mm HDPE Tube from our factory. If you are interested in our product, please contact us quickly!

Compact thin cylinder is a cylinder with compact structure, light weight and small space occupation, which has many advantages and application scenarios.

​Stainless Steel (SS304/316) Push In Fittings Stainless steel (SS304/316)push in fittings are made to be non corrosive and are highly resistant to aggressive environments, as well as corrosive fluids.
