Product Description

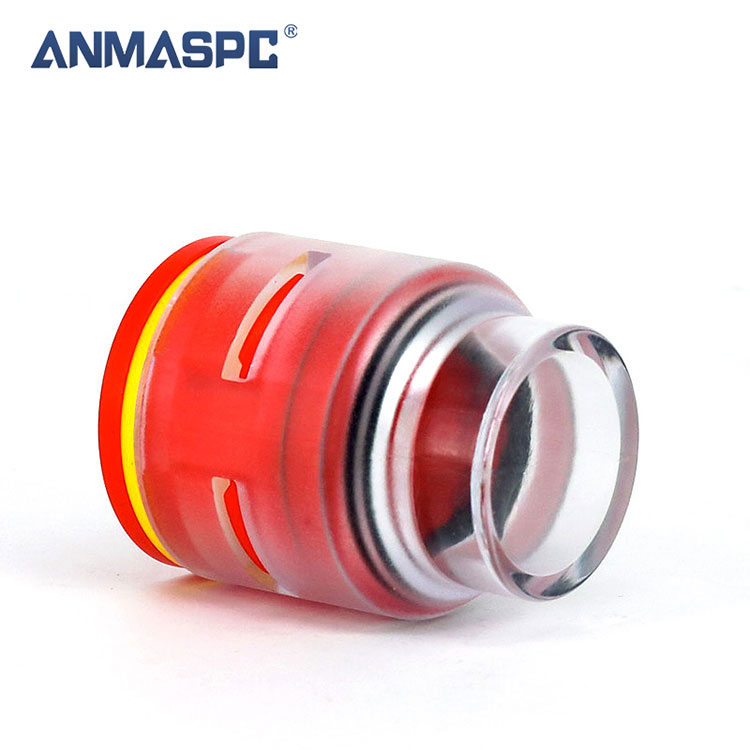

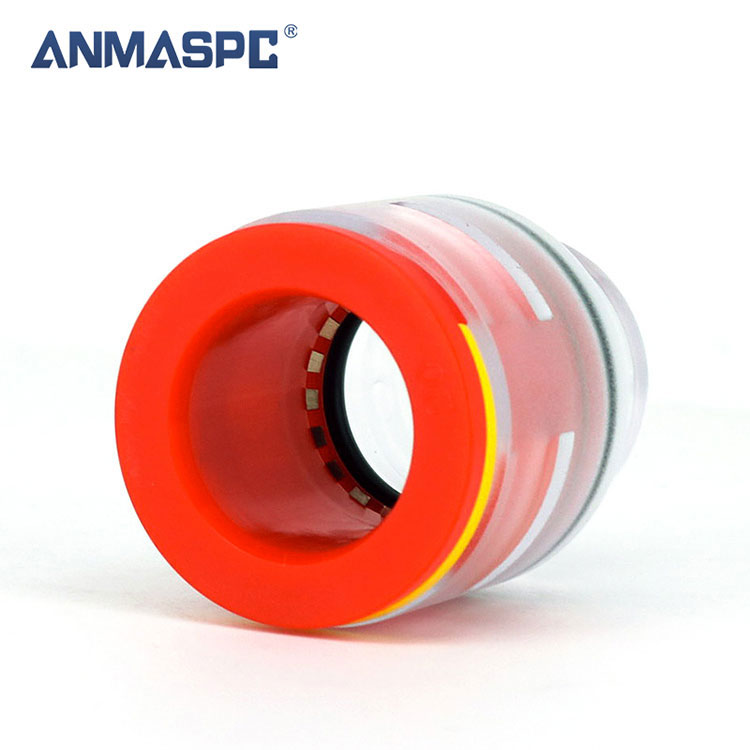

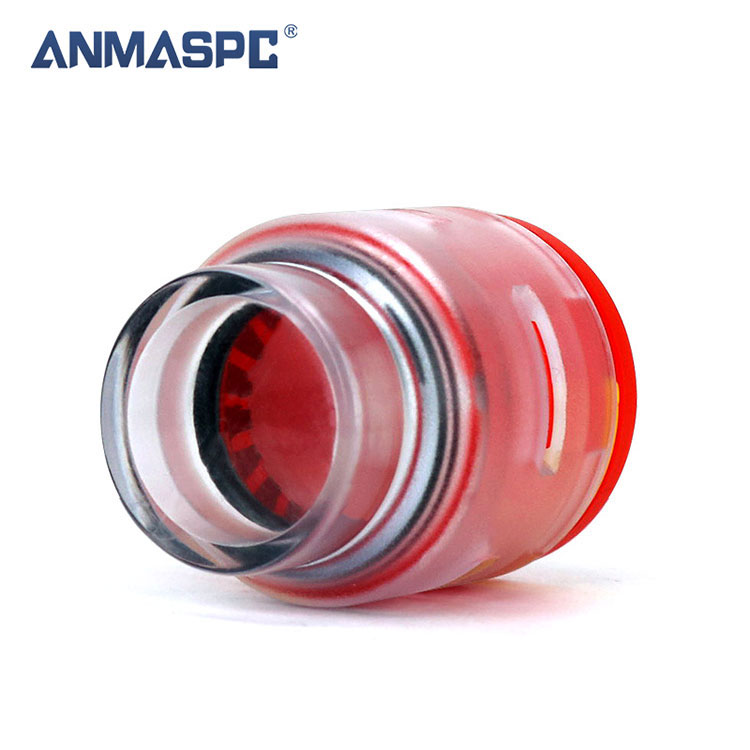

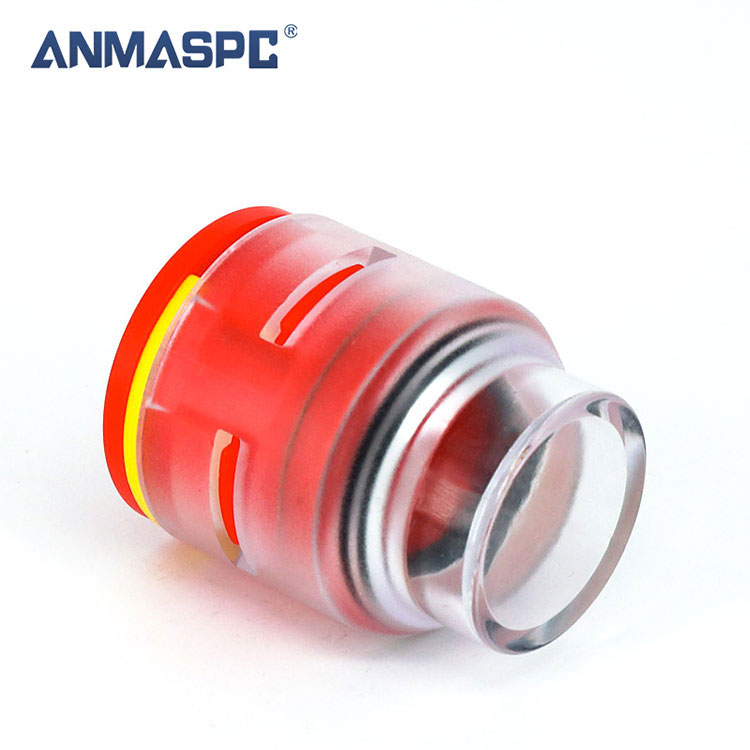

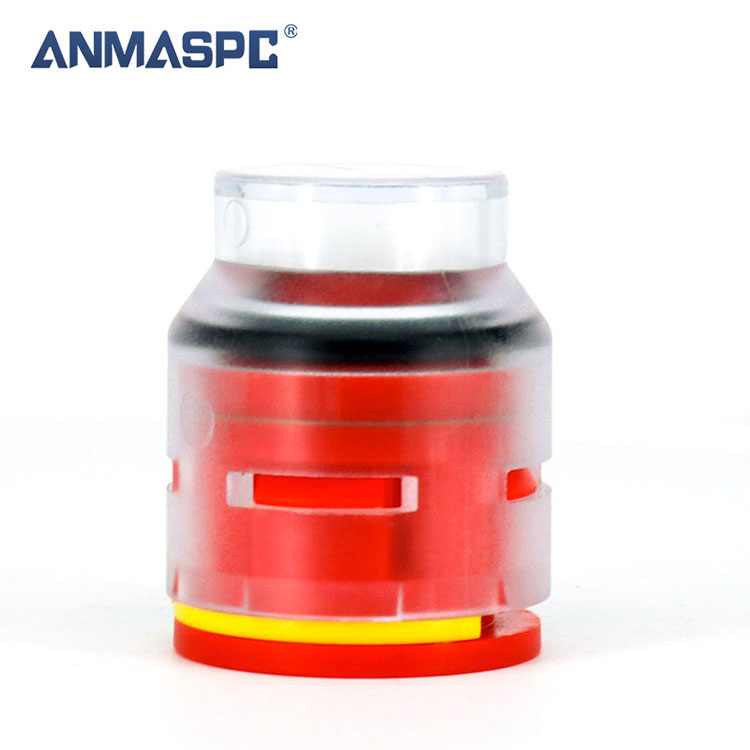

Air Blown Optical Connector Fiber Ending Cap

Standard transparent end caps, which are used to terminate open ended Tubes to avoid air leakage, water or other material ingress.End caps are preassembled with security clips.

MAIN FEATURES:

① Safety clips included

② Push-fit technology

③ Working Pressure: max. 25 bars

Description

		Componants
		1	Collet	POM
		2	Locking Clip	POM
		3	Cartridge	ZINK ALLOY
		4	Lock Claw	SUS301/304
		5	Support Ring	POM
		6	Seal Ring	TEP
		7	Body	PC2807
Fit Tube
Pipe material	HDPE、PE、Nylon、Polyurethane
Outer diameter of pipe	Φ3,Φ4,Φ5,Φ6,07,Φ8,Φ10,Φ12,Φ16,Φ18,Φ20

Technical Parameter
Working with fluids	Air
Tightness	0.15~0.8MPa No Leak
Pull test	400N
Proof pressure	2.5MPa
Operating pressure range	0~1.6MPa
Ambient temperature and fluid temperature	40~60℃
Installation Temperature	-10℃C/+50℃
Recommended Blowing Temperature	-15℃/+35℃
Degree of protection	IP68
UV-resistant grade	F1
Insertion force	50N max(5kg)
Lifespan:	25 years
StAndards:	EN 50411-2-8
Specifications And Dimensions
ANMA SPC Code	OD/ID
FPF3	3
FPF4	4
FPF5	5
FPF6	6
FPF7	7
FPF8	8
FPF10	10
FPF12	12
FPF14	14
FPF16	16
FPF18	18
FPF20	20
