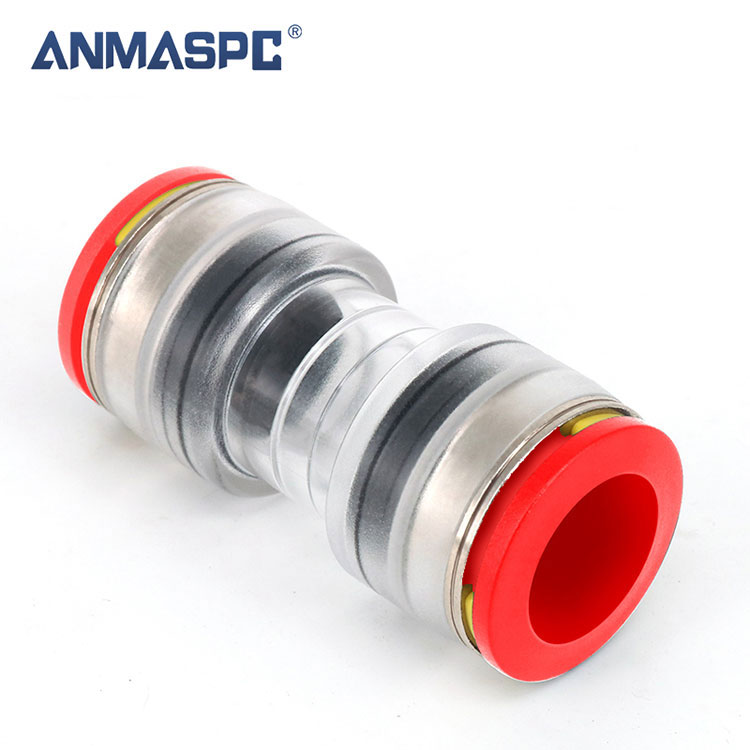

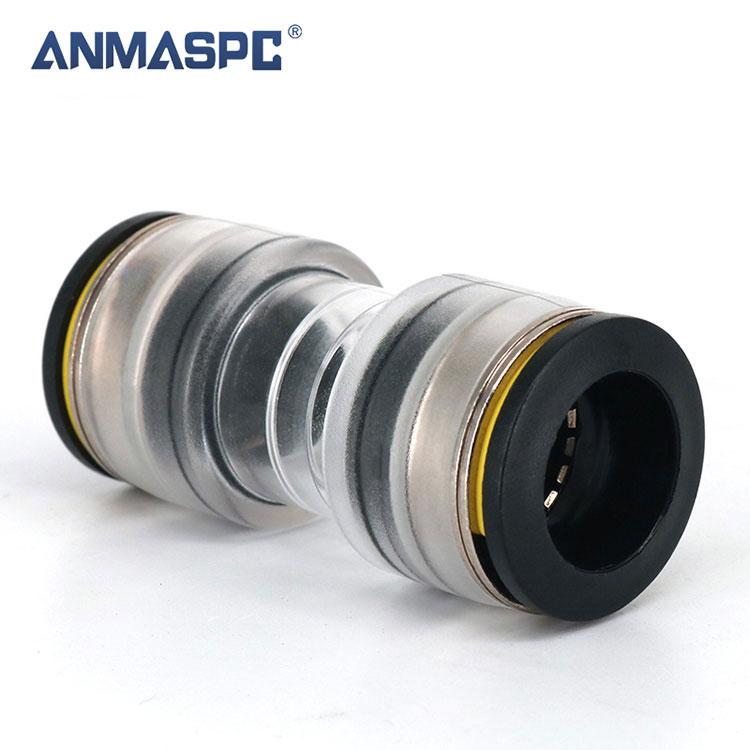

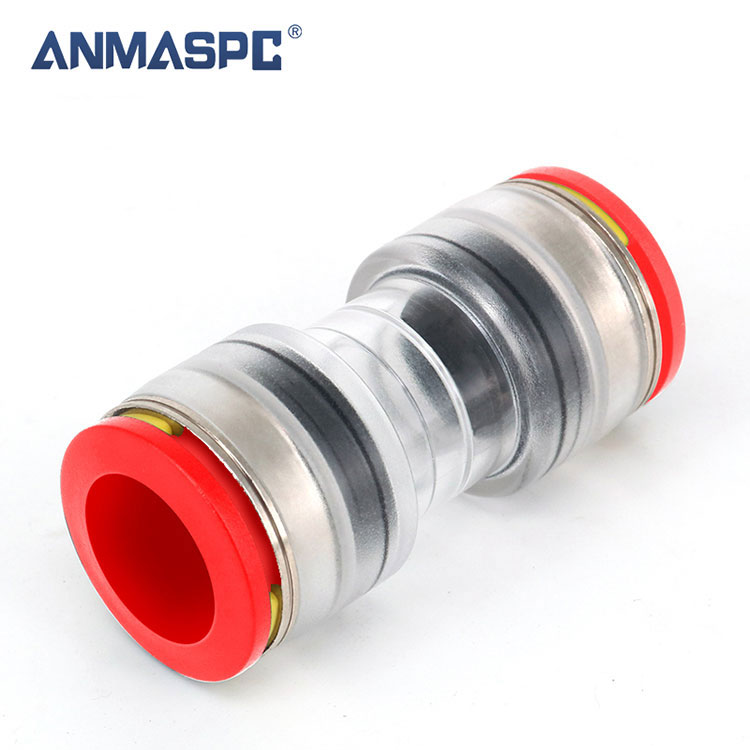

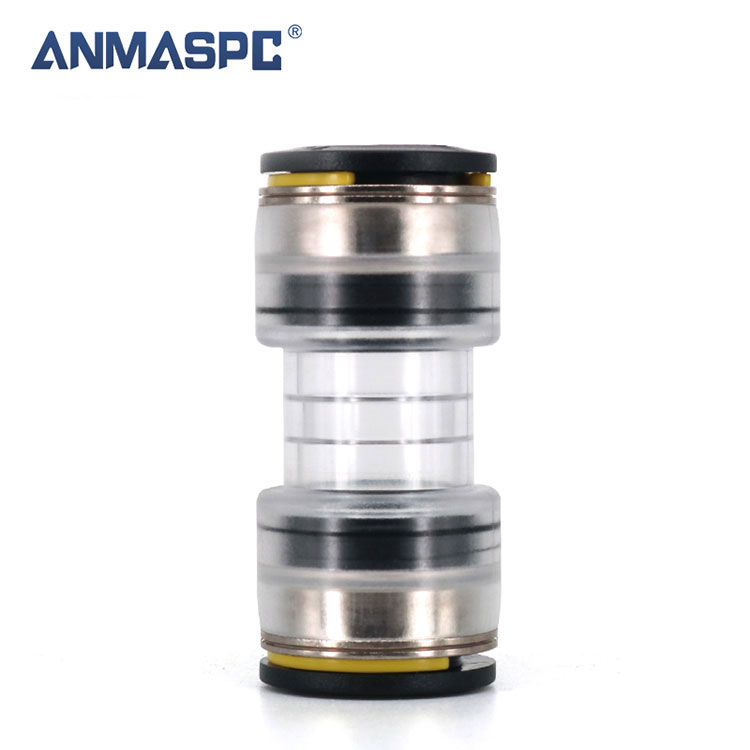

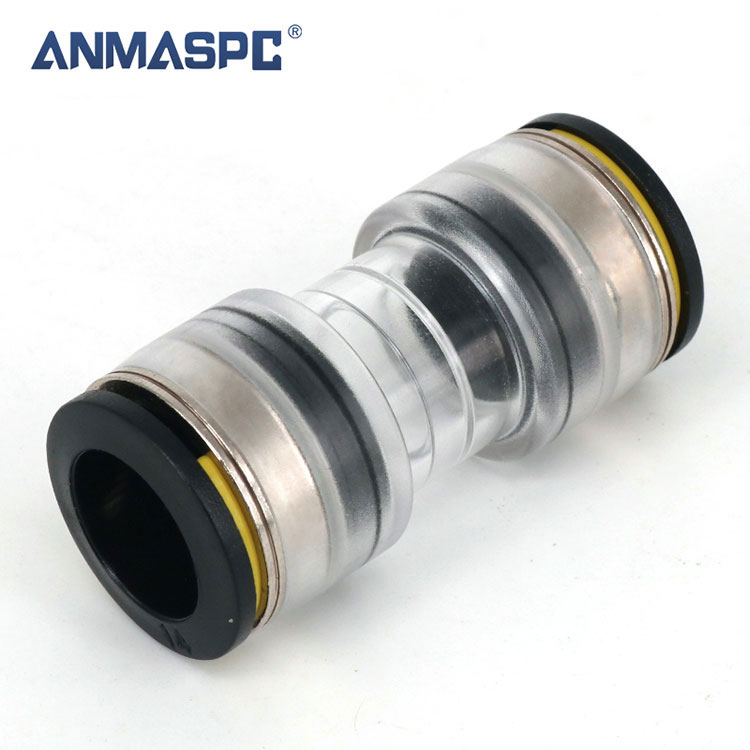

Microduct Straight connectors, which guarantee a good performance. Transparent body allows verification of the micro-ducts position inside. Safety clips,tamper evident, are pre-installed. Tested & comply with EN 50411-2-8.
① Safety clips included
② Push-fit technology
③ Working Pressure: max. 25 bars
Components | ||||
1 | Collet | POM | ||
2 | Locking Clip | POM | ||
3 | Cartridge | POM | ||
4 | Lock Claw | SUS301/304 | ||
5 | Support Ring | POM | ||
6 | Seal Ring | TEP | ||
7 | Body | PC2807 | ||
Fit Tube | ||||
Pipe material | HDPE、PE.Nylon.Polyurethane | |||
Outer diameter of pipe | Φ3,Φ4,Φ5,Φ6,Φ7,Φ8,Φ10,Φ12,Φ16,Φ18,Φ20 | |||
Technical Parameter |
||||
Working with fluids | Air | |||
Tightness | 0.15~0.8MPa No Leak | |||
Pull test | 400N | |||
Proof pressure | 2.5MPa | |||
Operating pressure range | 0~1.6MPa | |||
Ambient temperature and fluid temperature | -40~60℃ | |||
Installation Temperature | -10℃/+50℃ | |||
Recommended Blowving Temperature | -15℃/+35℃ | |||
Degree of protection | IP68 | |||
UV-resistant grade | F1 | |||
Insertion force | 50N max(5kg) | |||
Lifespan: | 25 years | |||
Standards: | EN 50411-2-8 |
ANMASPC Code | Pipe OD/ID | Pipe OD/ID | Tapered hole |
TPU3/2.1 | 3/2.1 | 3/2.1 | 2.1 |
TPU4/2.5 | 4/2.5 | 4/2.5 | 2.5 |
TPU4/2.8 | 4/2.8 | 4/2.8 | 2.8 |
TPU5/2.1 | 5/2.1 | 5/2.1 | 2.1 |
TPU5/3.5 | 5/3.5 | 5/3.5 | 3.5 |
TPU6/4 | 6/4 | 6/4 | 4 |
TPU7/3.5 | 7/3.5 | 7/3.5 | 3.5 |
TPU7/4 | 7/4 | 7/4 | 4 |
TPU7/5.5 | 7/5.5 | 7/5.5 | 5.5 |
TPU8/3.5 | 8/3.5 | 8/3.5 | 3.5 |
TPU8/6 | 8/6 | 8/6 | 6 |
TPU10/6 | 10/6 | 10/6 | 6 |
TPU10/8 | 10/8 | 10/8 | 8 |
TPU12/8 | 12/8 | 12/8 | 8 |
TPU12/10 | 12/10 | 12/10 | 10 |
TPU14/10 | 14/10 | 14/10 | 10 |
TPU14/12 | 14/12 | 14/12 | 12 |
TPU16/12 | 16/12 | 16/12 | 12 |
TPU16/13 | 16/13 | 16/13 | 13 |
TPU16/14 | 16/14 | 16/14 | 14 |
TPU18/15 | 18/15 | 18/15 | 15 |
TPU20/14 | 20/14 | 20/14 | 14 |
TPU20/15 | 20/15 | 20/15 | 15 |
TPU20/16 | 20/16 | 20/16 | 16 |
ANMASPC Code | A | B | C | D | E | F |
TPU3 | 28.8 | 5.5 | 8 | 8.3 | 3.2 | 2.1 |
TPU5 | 36.5 | 8 | 10.7 | 11.6 | 5.2 | 2-3.5 |
TPU7 | 38.8 | 10.9 | 13.4 | 14.7 | 7.3 | 3.5-4-5.5 |
TPU9 | 38.8 | 11 | 13.4 | 14.7 | 6.3 | 3.5-6 |
TPU10 | 43 | 12.9 | 15.6 | 16.5 | 10.3 | 6-8 |
TPU12 | 47 | 14.7 | 17.5 | 19.1 | 12.4 | 8-10 |
TPU14 | 49.8 | 16.9 | 20 | 21.1 | 14.5 | 10-12 |
TPU16 | 55.2 | 19 | 23 | 23.7 | 16.5 | 12-14 |
TPU18 | 69 | 22.5 | 27.5 | 29 | 18.5 | 14 |
TPU20 | 83.4 | 25.5 | 32.1 | 33.5 | 20.6 | 14-16-18 |
