Our factory has many years of HDPE Microduct Straight Coupler experience. Depending on the rich experience on the product quality, development and excellent customer service, the business expand very quickly in the right way.

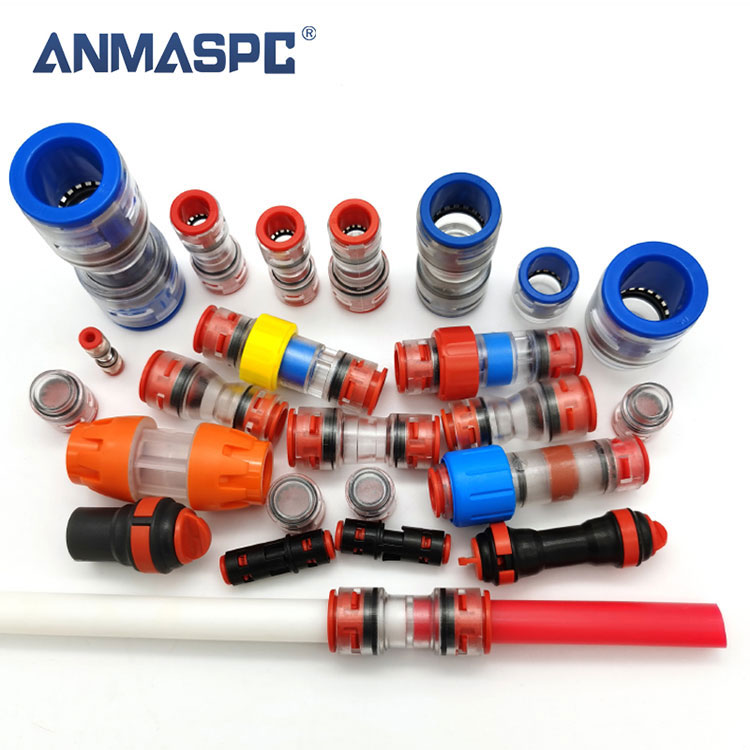

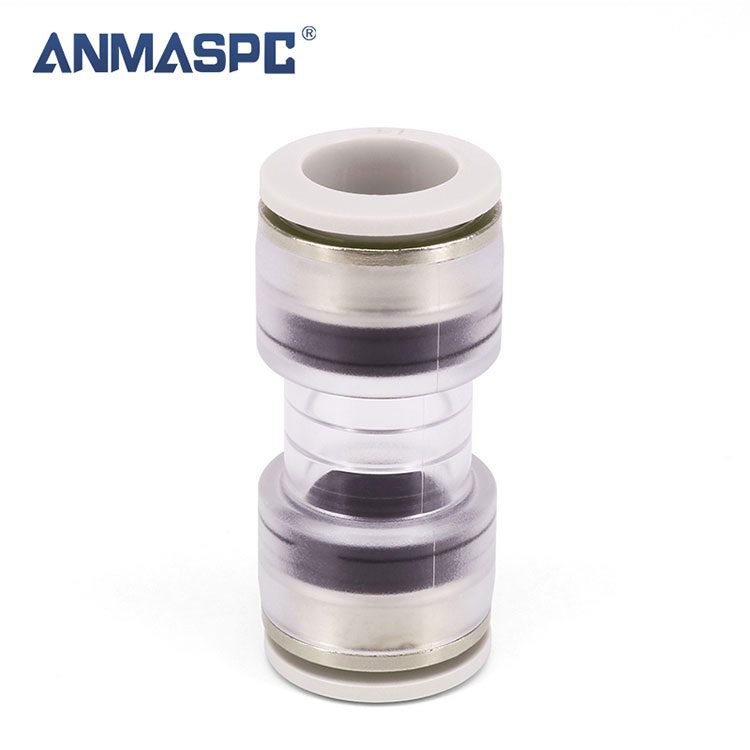

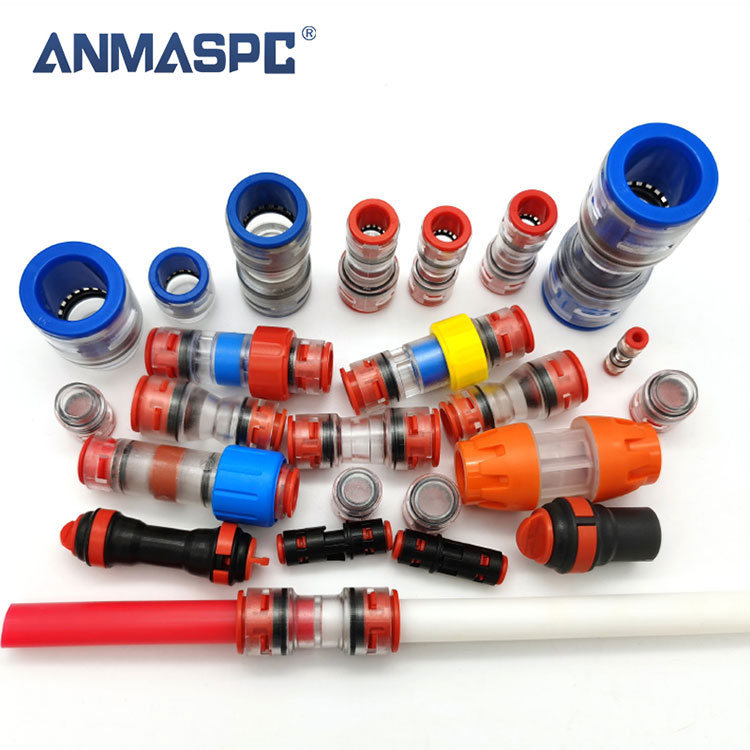

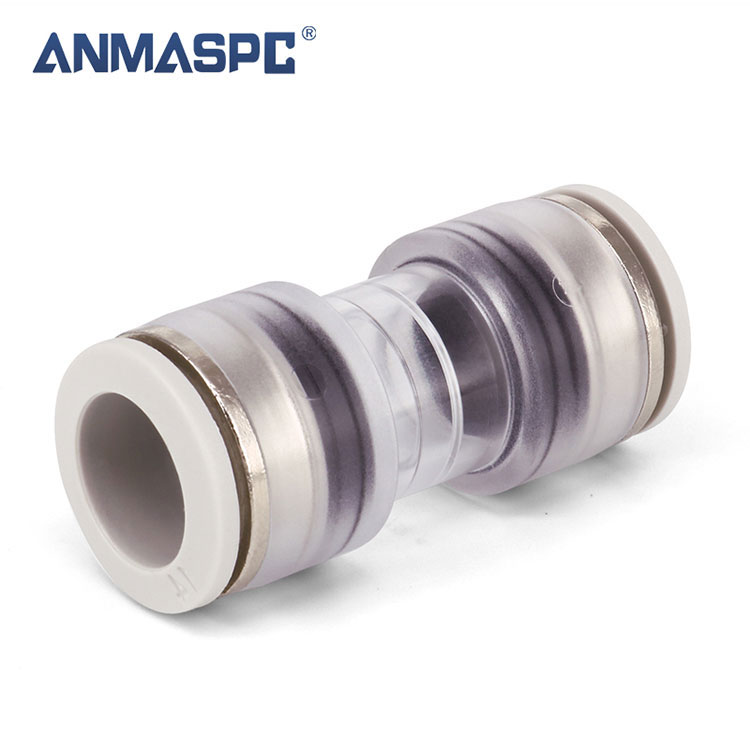

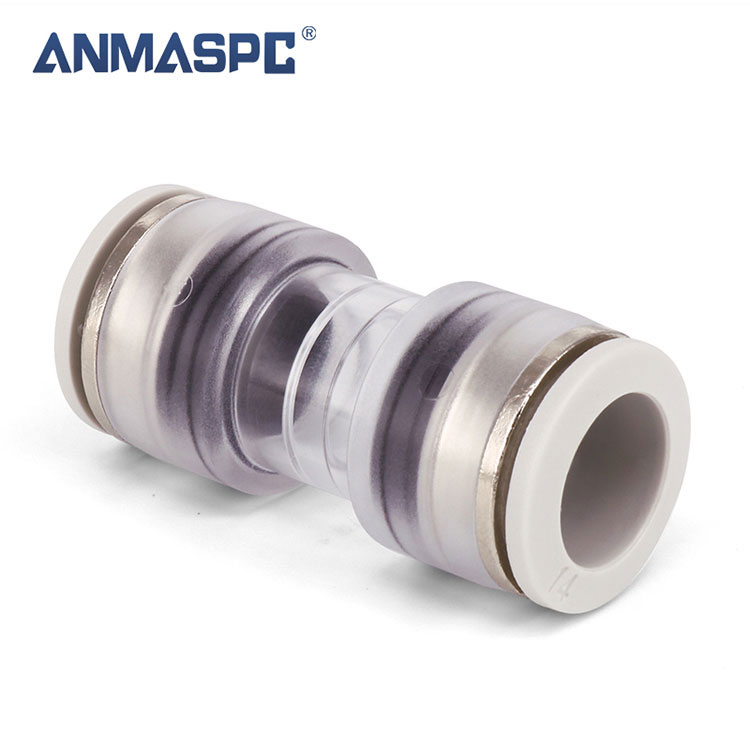

HDPE Microduct Straight Coupler, which guarantee a good performance. Transparent body allows verification of the micro-ducts position inside. Safety clips,tamper evident, are pre-installed. Tested & comply with EN 50411-2-8.
① Safety clips included
② Push-fit technology
③ Working Pressure: max. 25 bars
|
|
Components | ||
1 | Collet | POM | ||
2 | Locking Clip | POM | ||
3 | Cartridge | POM | ||
4 | Lock Claw | SUS301/304 | ||
5 | Support Ring | POM | ||
6 | Seal Ring | TEP | ||
7 | Body | PC2807 | ||
Fit Tube | ||||
Pipe material | HDPE、PE、Nylon、Polyurethane | |||
Outer diameter of pipe | Φ3,Φ4,Φ5,Φ6,Φ7,Φ8,Φ10,Φ12,Φ16,Φ18,Φ20 |
ANMASPC Code | Pipe OD/ID | Pipe OD/ID | Tapered hole |
TPU3/2.1 | 3/2.1 | 3/2.1 | 2.1 |
TPU4/2.5 | 4/2.5 | 4/2.5 | 2.5 |
TPU4/2.8 | 4/2.8 | 4/2.8 | 2.8 |
TPU5/2.1 | 5/2.1 | 5/2.1 | 2.1 |
TPU5/3.5 | 5/3.5 | 5/3.5 | 3.5 |
TPU6/4 | 6/4 | 6/4 | 4 |
TPU7/3.5 | 7/3.5 | 7/3.5 | 3.5 |
TPU7/4 | 7/4 | 7/4 | 4 |
TPU7/5.5 | 7/5.5 | 7/5.5 | 5.5 |
TPU8/3.5 | 8/3.5 | 8/3.5 | 3.5 |
TPU8/6 | 8/6 | 8/6 | 6 |
TPU10/6 | 10/6 | 10/6 | 6 |
TPU10/8 | 10/8 | 10/8 | 8 |
TPU12/8 | 12/8 | 12/8 | 8 |
TPU12/10 | 12/10 | 12/10 | 10 |
TPU14/10 | 14/10 | 14/10 | 10 |
TPU14/12 | 14/12 | 14/12 | 12 |
TPU16/12 | 16/12 | 16/12 | 12 |
TPU16/13 | 16/13 | 16/13 | 13 |
TPU16/14 | 16/14 | 16/14 | 14 |
TPU18/15 | 18/15 | 18/15 | 15 |
TPU20/14 | 20/14 | 20/14 | 14 |
TPU20/15 | 20/15 | 20/15 | 15 |
TPU20/16 | 20/16 | 20/16 | 16 |
ANMASPC Code | A | B | C | D | E | F |
TPU3 | 28.8 | 5.5 | 8 | 8.3 | 3.2 | 2.1 |
TPU5 | 36.5 | 8 | 10.7 | 11.6 | 5.2 | 2-3.5 |
TPU7 | 38.8 | 10.9 | 13.4 | 14.7 | 7.3 | 3.5-4-5.5 |
TPU9 | 38.8 | 11 | 13.4 | 14.7 | 6.3 | 3.5-6 |
TPU10 | 43 | 12.9 | 15.6 | 16.5 | 10.3 | 6-8 |
TPU12 | 47 | 14.7 | 17.5 | 19.1 | 12.4 | 8-10 |
TPU14 | 49.8 | 16.9 | 20 | 21.1 | 14.5 | 10-12 |
TPU16 | 55.2 | 19 | 23 | 23.7 | 16.5 | 12-14 |
TPU18 | 69 | 22.5 | 27.5 | 29 | 18.5 | 14 |
TPU20 | 83.4 | 25.5 | 32.1 | 33.5 | 20.6 | 14-16-18 |
