We control the HDPE Straight Microduct Coupling Reducer quality critically for each step during the manufacturing.We offer technical support that is second to none.we believe that our staffs will continue to forge ahead and achieve win-win goal with all walks of life in the developing future.

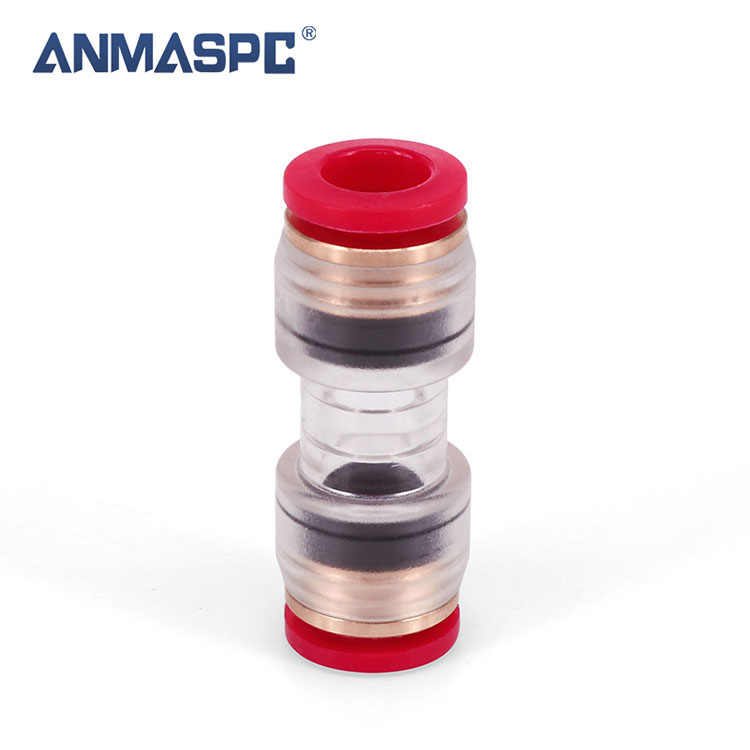

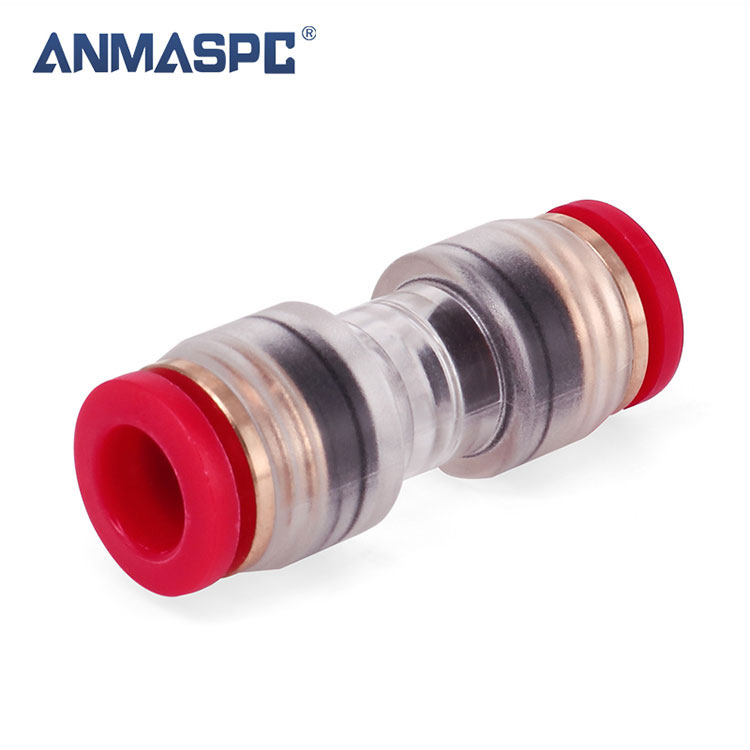

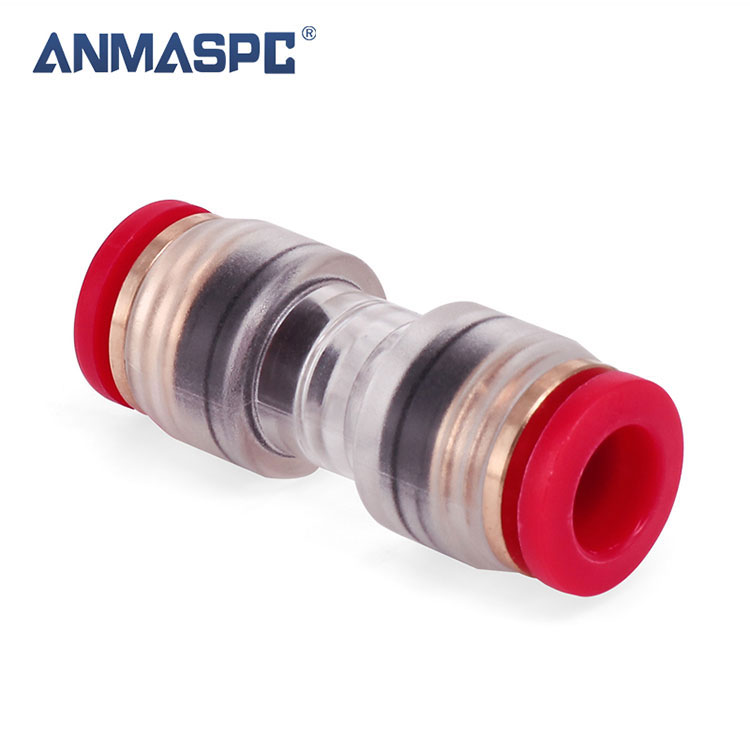

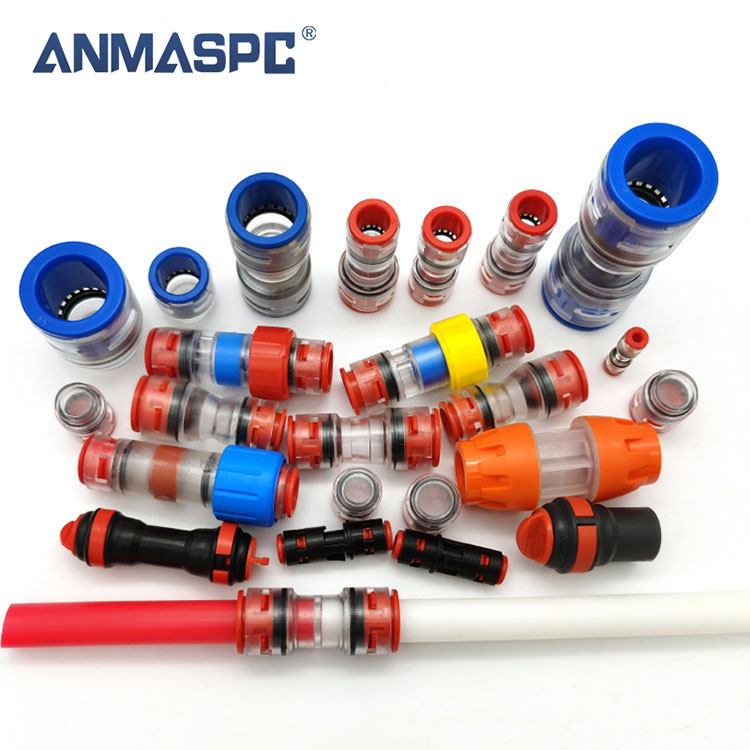

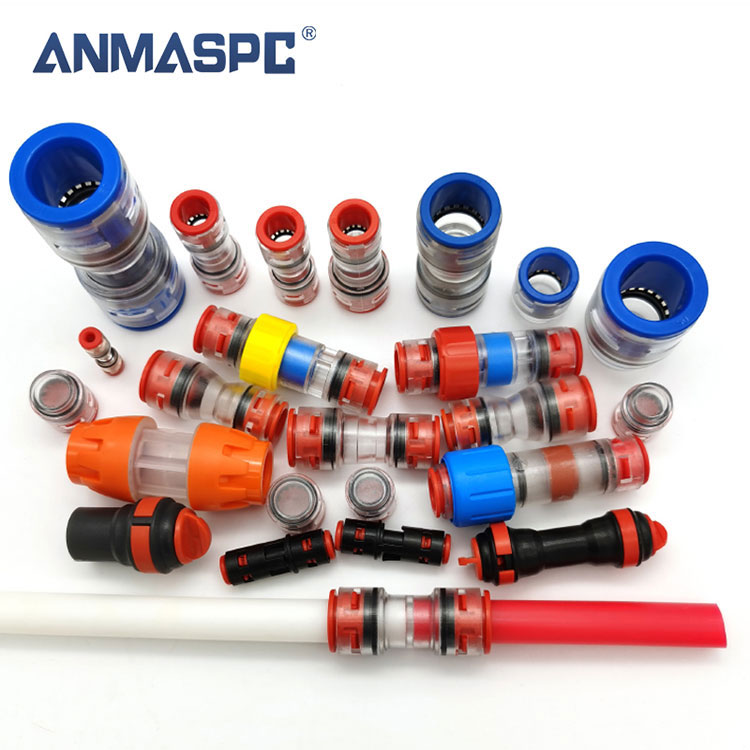

HDPE Straight Microduct Coupling Reducer, which guarantee a good performance. Transparent body allows verification of the micro-ducts position inside. Safety clips,tamper evident, are pre-installed. Tested & comply with EN 50411-2-8.
① Safety clips included
② Push-fit technology
③ Working Pressure: max. 25 bars
Components | ||||||
1 | Collet | POM | ||||
2 | Locking Clip | POM | ||||
3 | Cartridge | ZINK ALLOY | ||||
4 | Lock Claw | SUS301/304 | ||||
5 | Support Ring | POM | ||||
6 | Seal Ring | TEP | ||||
7 | Body | PC2807 | ||||
Fit Tube | ||||||
Pipe material | HDPE.PE.Nylon.Polyurethane | |||||
Outer diameter of pipe | Φ3,Φ4,Φ5,Φ6,Φ7,Φ8,Φ10,Φ12,Φ14,Φ16 | |||||
Technical Parameter | ||||||
Working with fluids | Air | |||||
Tightness | 0.15~0.8MPa No Leak | |||||
Pull fest | 400N | |||||
Proof pressure | 2.5MPa | |||||
Operating pressure range | 0~1.6MPa | |||||
Ambient temnperature and fluid temperature | -40~60℃ | |||||
Installation Temperature | -10℃C/+50℃ | |||||
Recommended Blowing Temperature | -15℃/+35℃ | |||||
Degree of protection | IP68 | |||||
UV-resistant grade | F1 | |||||
Insertion force | 50N max(5kg) | |||||
Lifespan: | 25 years | |||||
Standards: | EN 50411-2-8 |
ANMASPC Code | Pipe OD/ID | Pipe OD/ID | Tapered hole |
TPU3/2.1 | 3/2.1 | 3/2.1 | 2.1 |
TPU4/2.5 | 4/2.5 | 4/2.5 | 2.5 |
TPU4/2.8 | 4/2.8 | 4/2.8 | 2.8 |
TPU5/2.1 | 5/2.1 | 5/2.1 | 2.1 |
TPU5/3.5 | 5/3.5 | 5/3.5 | 3.5 |
TPU6/4 | 6/4 | 6/4 | 4 |
TPU7/3.5 | 7/3.5 | 7/3.5 | 3.5 |
TPU7/4 | 7/4 | 7/4 | 4 |
TPU7/5.5 | 7/5.5 | 7/5.5 | 5.5 |
TPU8/3.5 | 8/3.5 | 8/3.5 | 3.5 |
TPU8/6 | 8/6 | 8/6 | 6 |
TPU10/6 | 10/6 | 10/6 | 6 |
TPU10/8 | 10/8 | 10/8 | 8 |
TPU12/8 | 12/8 | 12/8 | 8 |
TPU12/10 | 12/10 | 12/10 | 10 |
TPU14/10 | 14/10 | 14/10 | 10 |
TPU14/12 | 14/12 | 14/12 | 12 |
TPU16/12 | 16/12 | 16/12 | 12 |
TPU16/13 | 16/13 | 16/13 | 13 |
TPU16/14 | 16/14 | 16/14 | 14 |
Model | A | B | C | D | E | F |
TPU03 | 31.9 | 6.9 | 10 | 11.1 | 3.2 | 2.1 |
TPU04 | 31.9 | 6.9 | 10 | 11.1 | 4.2 | 2.8/2.5 |
TPU05 | 35.4 | 8.9 | 12 | 12.8 | 5.2 | 3.5/2.1 |
TPU06 | 35.4 | 8.9 | 12 | 12.8 | 6.2 | 4.0 |
TPU07 | 41.0 | 11.5 | 14.1 | 15.4 | 7.2 | 5.5/4/3.5 |
TPU08 | 41.0 | 11.5 | 14.1 | 15.4 | 8.2 | 6/3.5 |
TPU10 | 42.0 | 14.0 | 17.5 | 18.3 | 10.2 | 08/06 |
TPU12 | 49.5 | 15.8 | 19.2 | 20.7 | 12.2 | 10/08 |
TPU14 | 50.5 | 18.0 | 22.2 | 23 | 14.3 | 12/10 |
TPU16 | 55.0 | 20.0 | 24.7 | 25.1 | 16.2 | 14/13/12 |
