HDPE Reducer Microduct Connectors
We control the HDPE Reducer Microduct Connectors quality critically for each step during the manufacturing.We offer technical support that is second to none.we believe that our staffs will continue to forge ahead and achieve win-win goal with all walks of life in the developing future.
Send Inquiry
Product Description

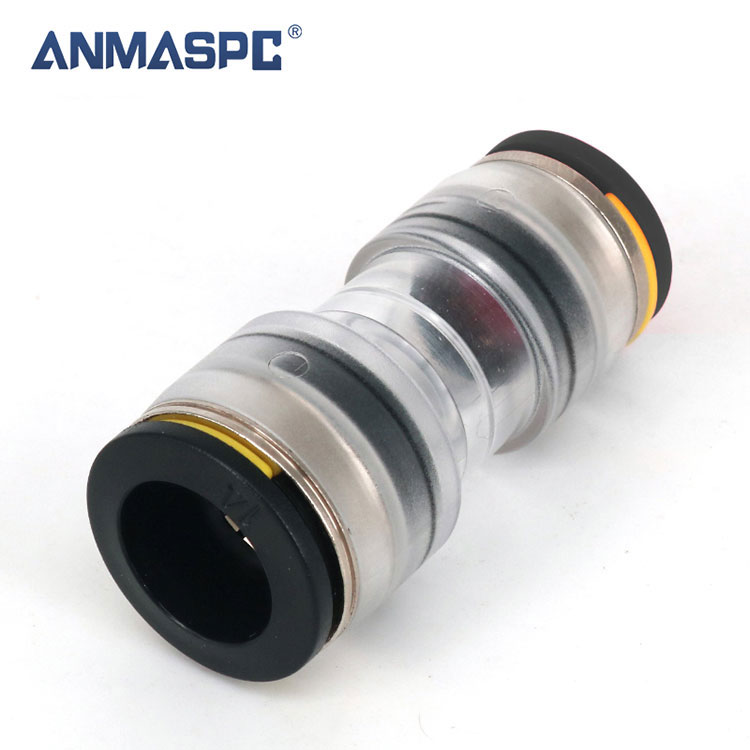

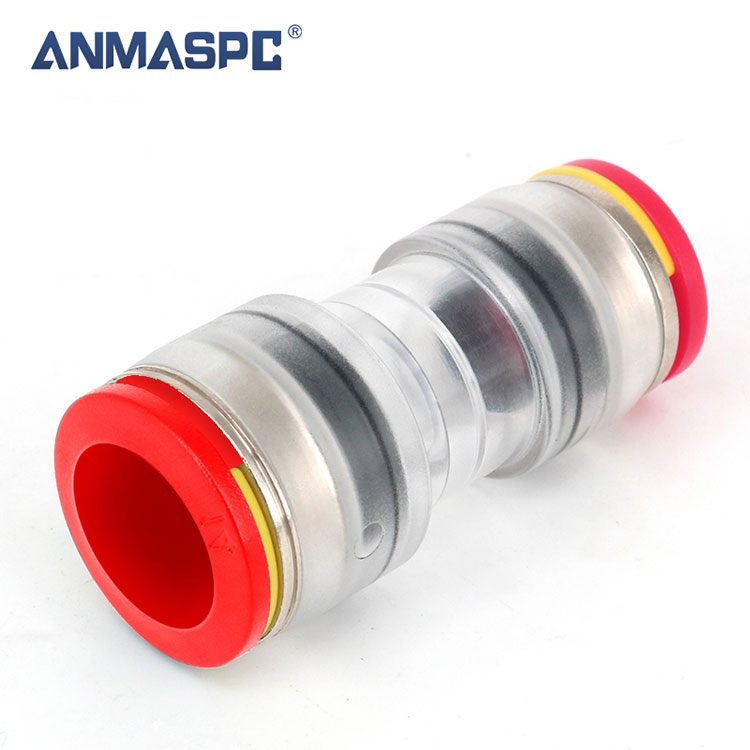

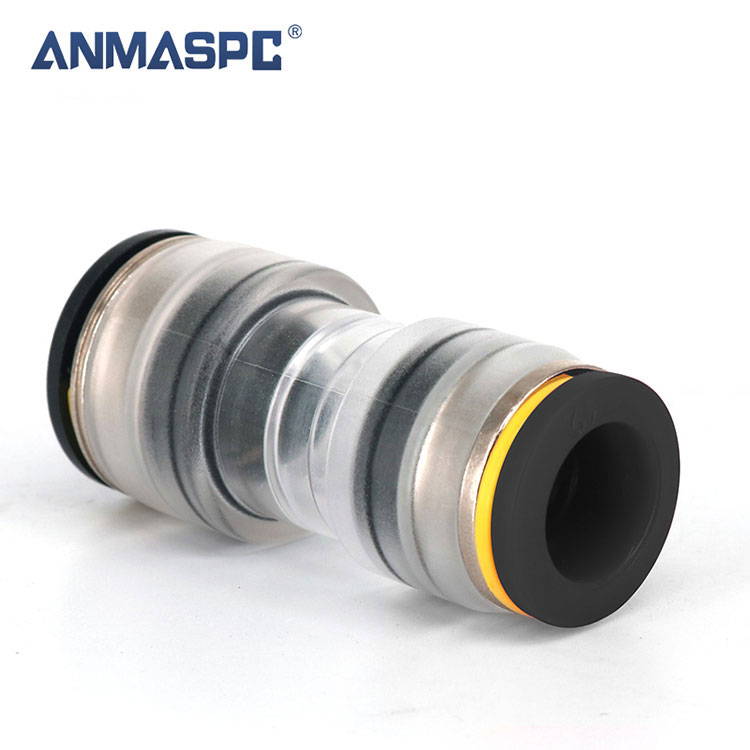

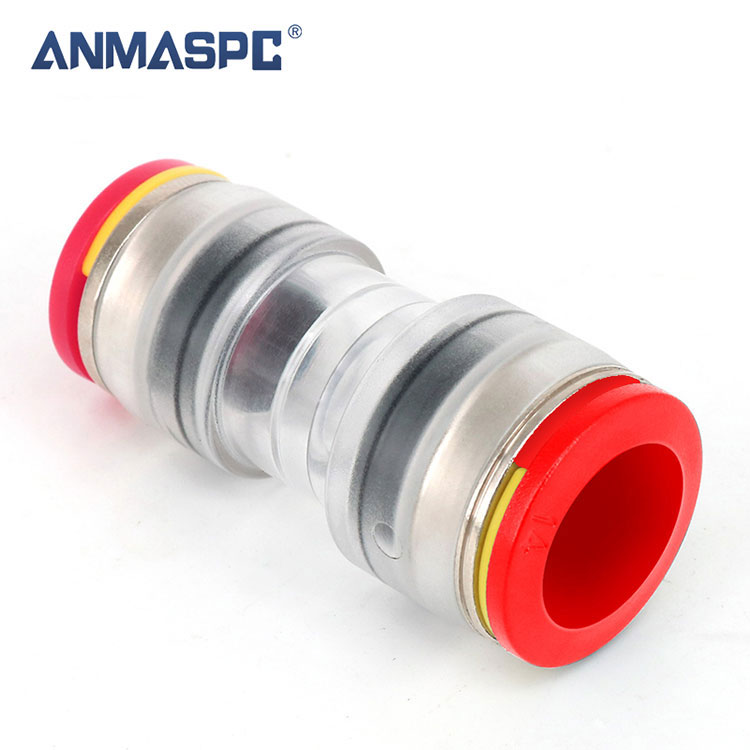

HDPE Fiber Optic Push Fit Reducer Microduct Connectors
HDPE Reducer Microduct Connectors allows interconnection between two micro-ducts with different outer diameter. Typically this is the case of transition point from DB to DI micro-duct entering the house. If you have not fnd your correct size among METAL FREE or REINFORCED than choose one of these.
MAIN FEATURES：
① Safety clips included
② Push-fit technology
③ Working Pressure: max. 25 bars
Description
|
|
Components | |||
| 1 | Collet | POM | |||
| 2 | Locking Clip | POM | |||
| 3 | Cartridge | ZINK ALLOY | |||
| 4 | Lock Claw | SUS301/304 | |||
| 5 | Support Ring | POM | |||
| 6 | Seal Ring | TEP | |||
| 7 | Body | PC2807 | |||
| Fit Tube | |||||
| Pipe matenial | HDPE、PE、Nylon.Polyurethane | ||||
| Outer diamoter of pipe | Φ3,Φ4,Φ5,Φ6,Φ7,Φ8,Φ10,Φ12,Φ14,Φ16 | ||||
| Technical Parameter | |||||
| Working with fluids | Air | ||||
| Tightness | 0.15~0.8MPa No Leak | ||||
| Pull test | 400N | ||||
| Proof pressure | 2.5MPa | ||||
| Operating pressure range | 0~1.6MPa | ||||
| Ambient temperature and fluid temperature | -40~60℃ | ||||
| Installation Temperature | -10℃/+50℃ | ||||
| Recommended Blowing Temperature | -15℃/+35℃ | ||||
| Degree of protection | IP68 | ||||
| UV-resistant grade | F1 | ||||
| Insertion force | 50N max(5kg) | ||||
| Lifespan: | 25 years | ||||
| Standards: | EN 50411-2-8 | ||||
Table Of Articles
| ANMASPC Code | Pipe OD/ID | Pipe OD/ID | Tapered hole |
| TPG5-3/2.1 | 5/3.5 | 3/2.1 | 3.5>2.1 |
| TPG5-4/2.8 | 5/3.5 | 4/2.8 | 3.5>2.8 |
| TPG7-3/2.1 | 7/5.5 | 3/2.1 | 5.5>2.1 |
| TPG7-4/2.8 | 7/5.5 | 4/2.8 | 5.5>2.8 |
| TPG7-5/3.5 | 7/5.5 | 5/3.5 | 5.5>3.5 |
| TPG8-3/2.1 | 8/6 | 3/2.1 | 6>2.1 |
| TPG8-5/3.5 | 8/6 | 5/3.5 | 6>3.5 |
| TPG8-7/5.5 | 8/6 | 7/5.5 | 6>5.5 |
| TPG10-5/3.5 | 10/8 | 5/3.5 | 8>3.5 |
| TPG10-7/5.5 | 10/8 | 7/5.5 | 8>5.5 |
| TPG10-8/6 | 10/8 | 8/6 | 8>6 |
| TPG12-7/5.5 | 12/10 | 7/5.5 | 10>5.5 |
| TPG12-8/6 | 12/10 | 8/6 | 10>6 |
| TPG12-10/8 | 12/10 | 10/8 | 10>8 |
| TPG14-10/8 | 14/12 | 10/8 | 12>8 |
| TPG14-12/10 | 14/12 | 12/10 | 12>10 |
| TPG16-10/8 | 16/13 | 10/8 | 13>8 |
| TPG16-12/10 | 16/13 | 12/10 | 13>10 |
Overall Dimensions
| Model | A | B | C | D | EC | ED | EA | EB | F |
| TPG5-3 | 33.6 | 6.1 | 10.0 | 11.1 | 12.0 | 12.8 | 3.2 | 5.2 | 2.3 |
| TPG7-3 | 36.4 | 6.1 | 10.0 | 11.1 | 4.1 | 154.0 | 3.2 | 72 | 2.3 |
| TPG8-3 | 36.4 | 6.1 | 10.0 | 11.1 | 14.1 | 15.4 | 3.2 | 8.2 | 2.3 |
| TPG7-5 | 38.2 | 7.6 | 12.0 | 12.8 | 14.1 | 15.4 | 5.3 | 72 | 3.7 |
| TPG8-5 | 38.2 | 7.6 | 12.0 | 12.8 | 14.1 | 15.4 | 5.3 | 8.2 | 3.7 |
| TPG10-7 | 41.5 | 9.0 | 14.1 | 15.4 | 17.5 | 18.3 | 7.3 | 10.3 | 5.7 |
| TPG10-8 | 41.5 | 9.5 | 14.1 | 15.4 | 17.5 | 18.3 | 8.2 | 10.3 | 6.3 |
| TPG12-8 | 45.3 | 9.5 | 19.2 | 15.4 | 19.2 | 20.7 | 8.2 | 12.3 | 6.3 |
| TPG12-10 | 47.3 | 15.8 | 17.5 | 18.7 | 19.2 | 20.7 | 10.3 | 12.3 | 8.3 |
| TPG14-10 | 50.3 | 14.0 | 17.5 | 18.4 | 22.2 | 23.0 | 10.3 | 14.3 | 8.3 |
| TPG14-12 | 50.6 | 18.0 | 19.2 | 20.7 | 22.2 | 23.0 | 12.3 | 14.3 | 10.3 |
| TPG16-10 | 48.5 | 14.0 | 17.5 | 18.7 | 24.7 | 25.1 | 10.3 | 16.2 | 8.3 |
| TPG16-12 | 52.3 | 18.0 | 19.2 | 20.7 | 24.7 | 25.1 | 12.3 | 16.2 | 10.3 |
