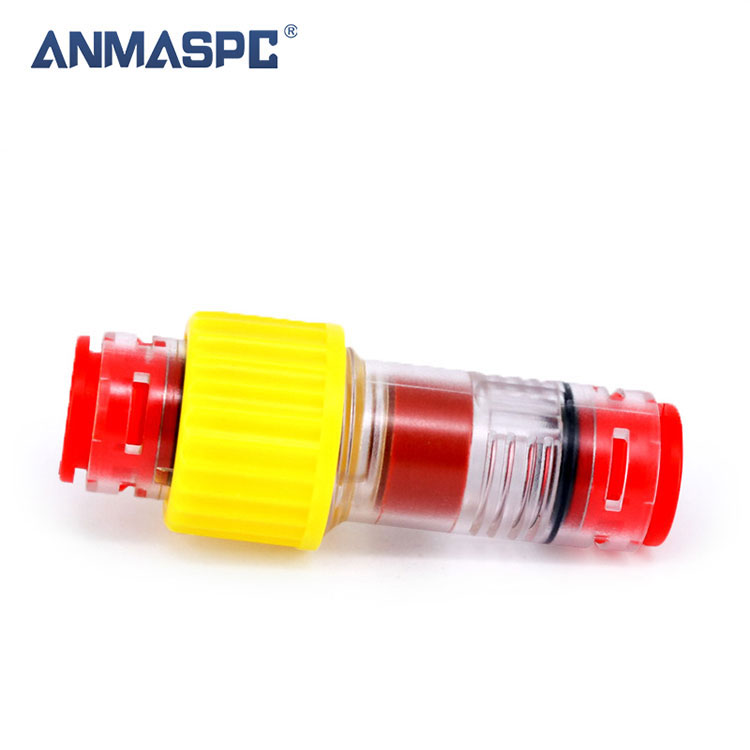

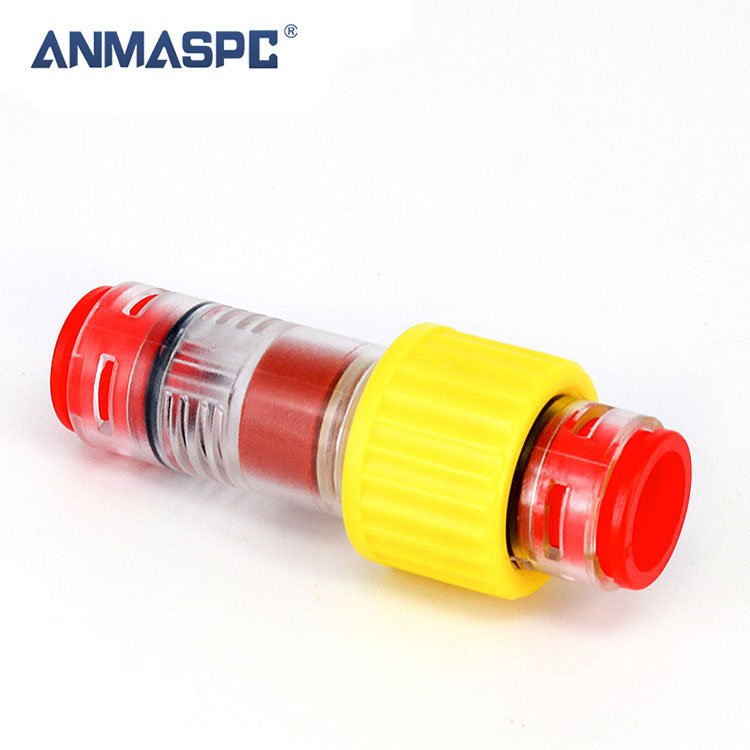

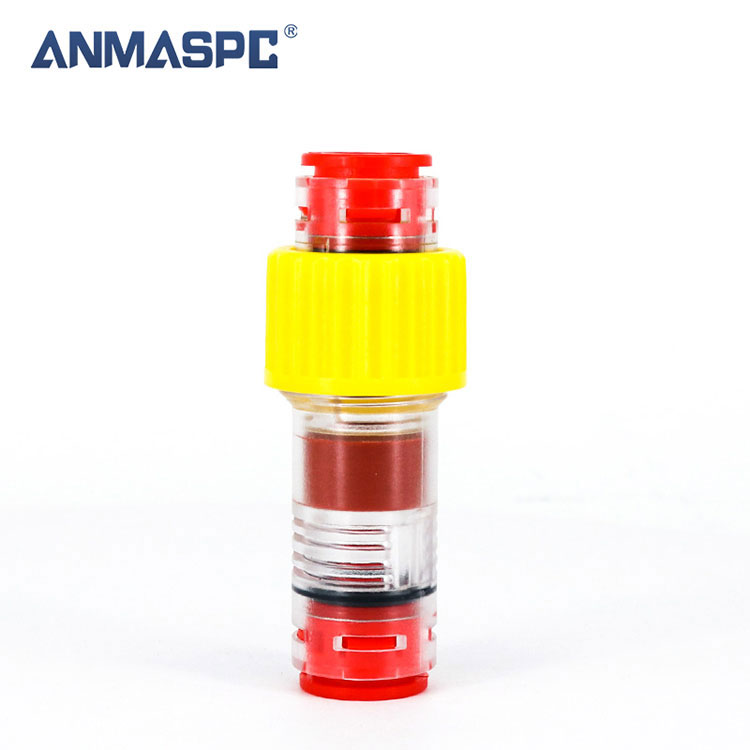

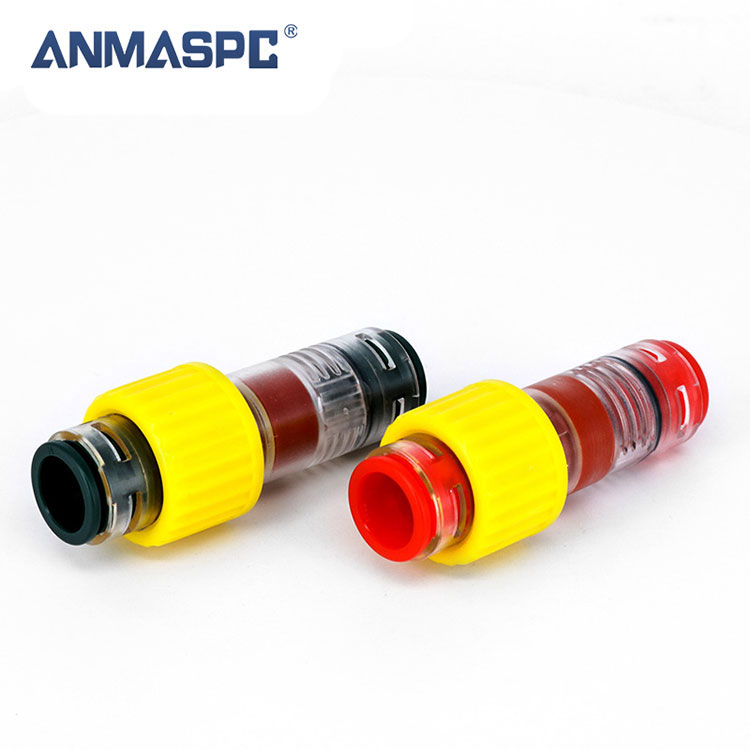

Waterproof Air Gas Block Plastic HDPE Tube Straight Water

Micro-duct connector providing gas tight seal connection around the cable inside. When opened, cable can be blown through this connector And sealed afterwards by rotating ring. They operate safely at blowing pressure of 10 Bar And protect the inner cavity of your micro-ducts against ingress of any particles.Should be installed always at the entry transition points to the buildings, ODFs etc. where water or gas presence is the matter of danger. Two locking clips can be ordered separately to prevent micro-ducts self release.

Main features:

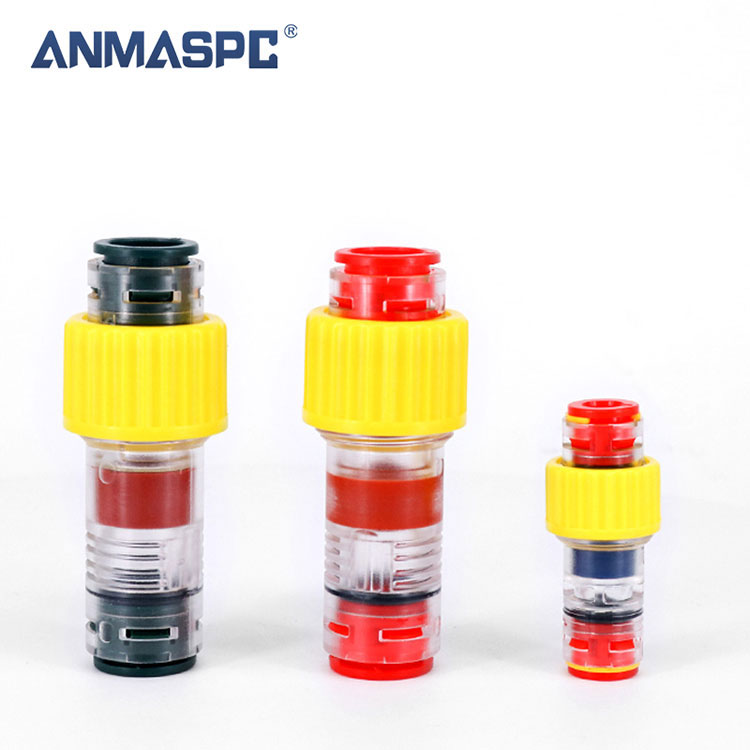

① Available for wide range of micro-duct sizes OD 4–16

② Push-fit system

③ Transparent body

④ Body material: polycarbonate

⑤ Sealing: up to 0,3 bars

⑥ Packaging: bag

Description

		Components
		1	Collet	POM
		2	Locking Clip	POM
		3	Cartridge	POM
		4	Lock Claw	SUS301/304
		5	Support Ring	POM
		6	O-ring	TEP
		7	Connector	POM
		8	Lock nut	POM
		9	Body	PC2807
		10	O-ring	TEP
		11	Silicone pad	Silicon rubber
Fit Tube
Pipe material		HDPE、PE、Nylon、Polyurethane
Outer diameter of pipe		Φ3,Φ4,05,Φ6,07,08,Φ10,Φ12,Φ16,Φ18,Φ20
Technical parameter
Workingwith fluids			Air
Tightness			0.15~0.8MPa
Pull test			400N
Proof pressure			2.5MPa
Operating pressure range			0~1.6MPa
Ambient temperature and fluid temperature			-40~60℃
Degree of protection			IP68
Insertion force			50N max(5kg)
