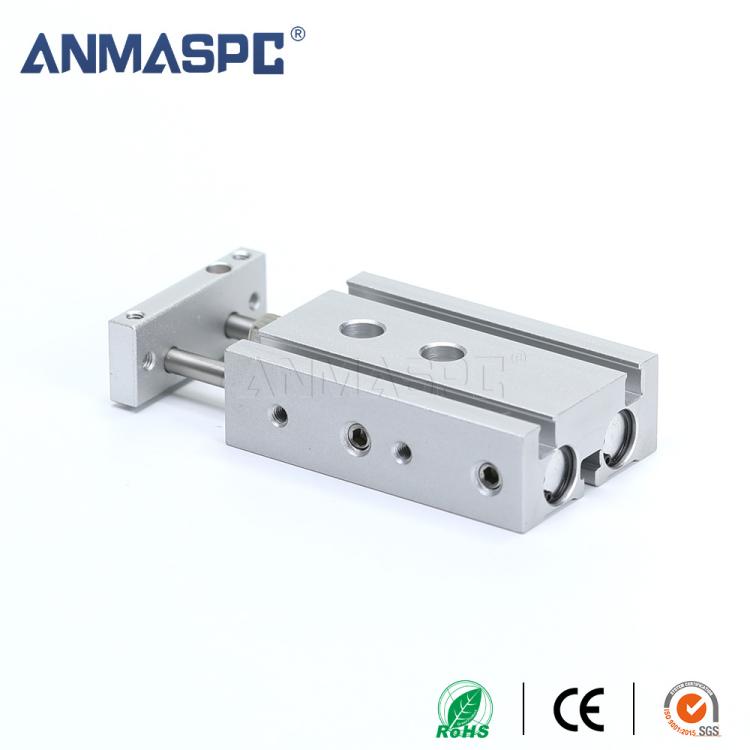

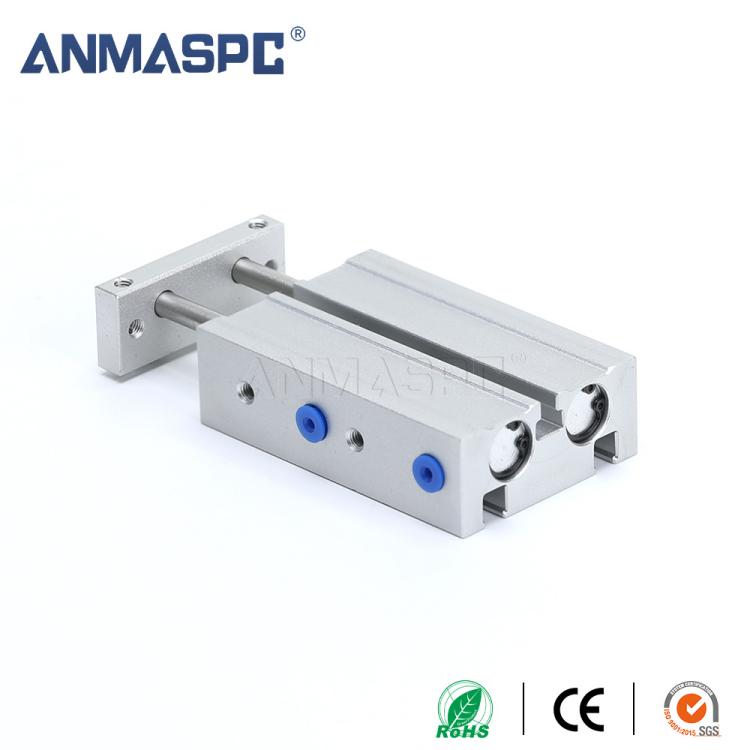

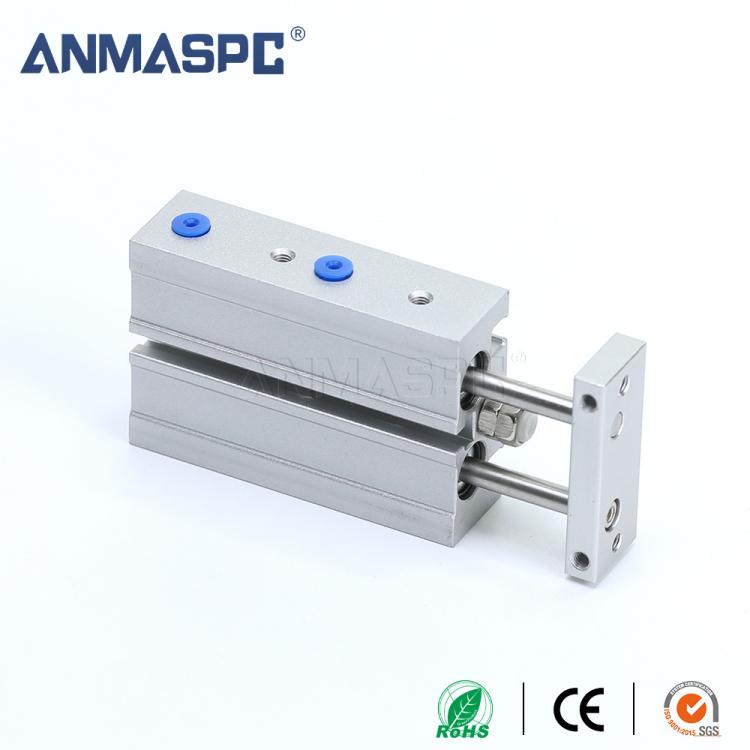

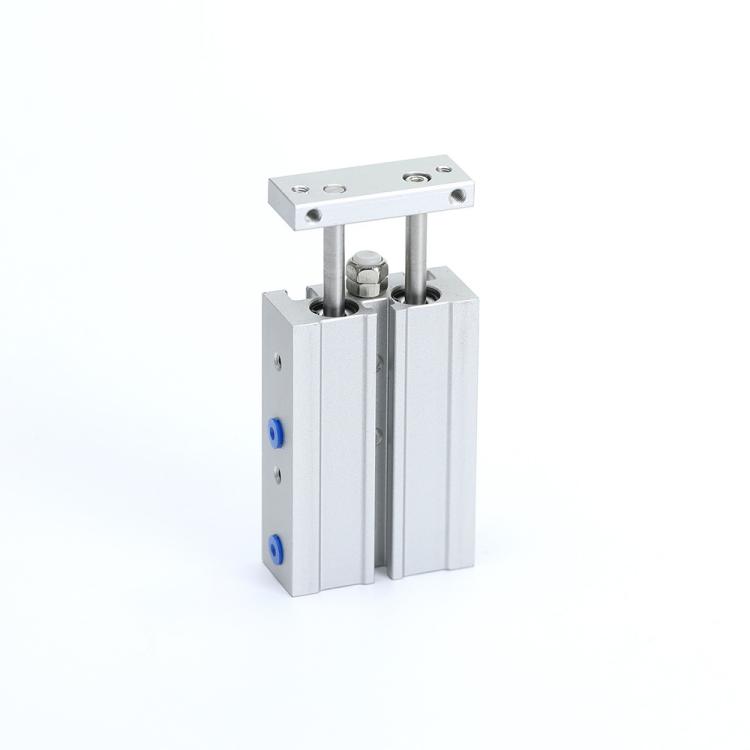

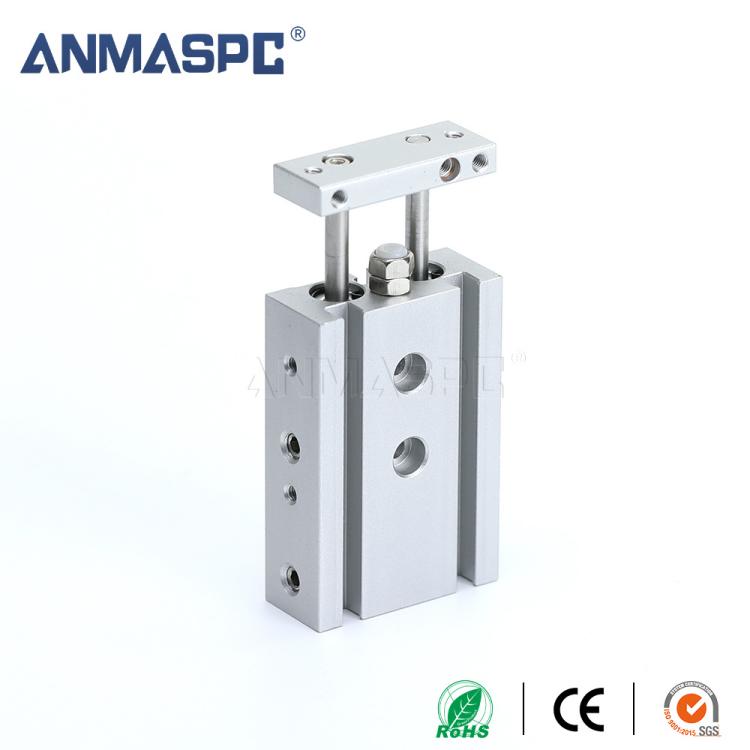

TR series Pneumatic cylinder Twin-rod cylinder

‌TR double-rod cylinder is a cylinder with a double-axis double-rod structure, usually implemented in accordance with JIS standards, with high non-rotational accuracy and good guiding performance. Its features include:

‌High non-rotational accuracy‌, suitable for precise guiding.

‌Adopting extended support guide‌, with good guiding performance.

‌There are mounting holes on three sides of the fixing plate‌, which is convenient for multi-position loading.

‌It has certain anti-bending and torsion performance‌, and can withstand certain lateral loads.

‌Except the axial direction, all other sides of the body have mounting holes‌, providing a variety of installation and fixing methods.

‌There are two sets of inlet and exhaust ports on both sides of the cylinder‌, for actual needs.

‌There is an anti-collision pad at the front end of the body‌, which can adjust the cylinder stroke and relieve impact.

‌The standard configuration is magnetic type‌, and there is no non-magnetic type optional‌.
